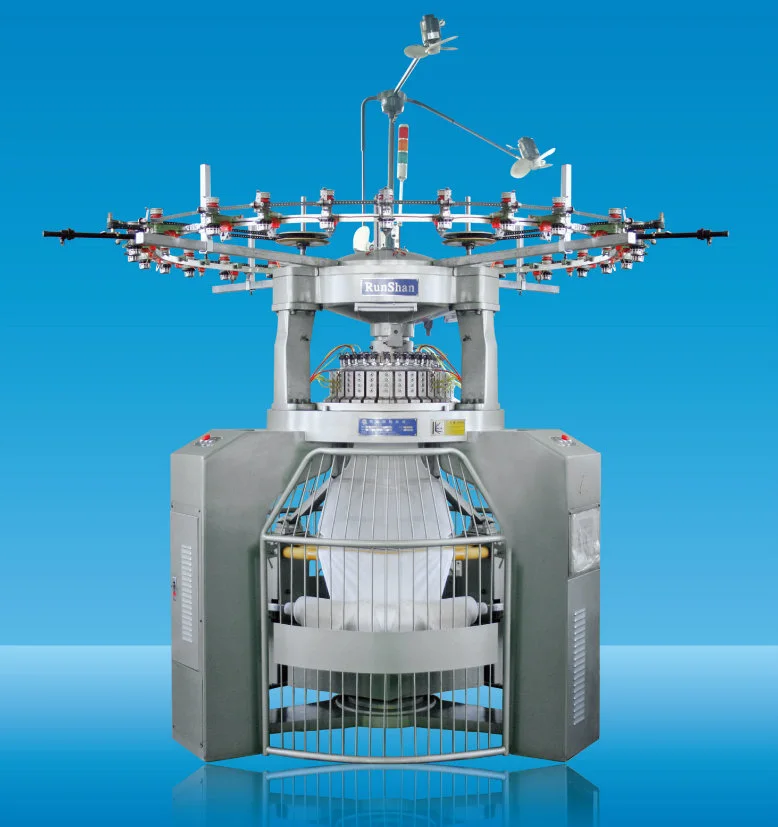

Body-Size Interlock Knitting Machine

We manufacturing carefully

STRUCTURE
The structure is designed under human engineering and knitting principle for elegant and rigid framework. The high-quality cast components are handled with aging for long period and by aging equipments to prevent distortion. Advanced CNC and special surface treatment ensure long-term stability and durability;
BED & GEAR
The bed and its gear is oil-bathed with hi-grade lubricant oil, so that the machine operates smoothly with low noise and the gear is sustainable and less-wear;
DRIVE SYSTEM
Reasonable drive system with v-belt and timing belt ensures correct transmission and provides overload protection. Imported one-way clutch bearing ensures accurate transmission and prevents reverse rotate of machine effectively;
CYLINDER
Cylinder and dial is durable as they are made of special alloy under precision processing and heat treat;
CAMS
All cams are made of Japanese alloy die steel and process by CNC under CAD/CAM and heat -treatment. The process guarantees the correct dimension of needle track with smooth face, great hardness and wear-proof, in order to fulfill the various requirements of materials and knitting methods;
CENTRAL STITCH SYSTEM
Latest design of central stitch system is delicate, simple and stable;
CREEL
New top creel with ample space makes yarn-carry and cylinder-change more easy and time-saving;
 PANEL
With hi-graded electronic components, user-friendly design for easy operation, network compatible for centralized control of production to improve efficiency and management;
TAKE DOWN
Rolling & folding take down system, with adjustable square cloth frame, is applicable to make cloth in even tension and density so as to increase the rolling quality and reduce mark;
QUICK-CHANGE
Change the kit only, easy to change between rib and interlock, so can be fast response to the fashion demands and seasonal changes, great competence for wider markets;
OUTLOOK With metallic paint coated and baked after several processes as brushing, dipping and painting, the surface of machine is strong and corrosive-proof against knitting oil while the machine outlook is smooth and elegant.


General Features:

1. Using high annealed cast-iron as machine's frame which pass through long time natural aging insure machine's quality stable and durable.

2. Most of spare parts and accessories designed by CAD system and machining by CNC.So the precision of each part get a great improve.

3. Using electronic oil sprayer or large volume of misty sprayer oil lubricator which can lubricate the cylinder and the needles respectively, which keep needles and sinkers not be easily damaged.

4. High technological digital control panel which offers great simplicity for customer operating machine. Multi-functional control panel is convenient to operate which can record down the output of the three shift production accurately, less breakdown.

5. Machine can be easy to converted to other types machines through add little spare parts. Very flexible and high efficiency in knitting fabrics.

Main Parts & Equipment of  Runshan series Circular Knitting Machine




      This  machine   is specially  designed  for  the  seamless  underwear, which  adopts  three  track  cam  in dial  and four  track     cam  in  cylinder.  It's  main  product  is  interlock  by   using  three  track  cam  in  dial  and  three  track  cam  in  cylinder. By  changing  cams  and  cylinder, it  can  also  produce  1x1  rib, 2x2  rib, Lycra  rib  and  every  kinds  of  mini-jacquard  fabric  and   mesh  fabric. It's  one  universal  knitting  machine.



Features
1  Most of the structures and key part are produced by advanced processing center, which ensure the precision and accuracy
2  All cams are made of special alloy steel and processed by CNC under CAD/CAM and special treatment. The process guarantees the great hardness and wear-proof.
3  Use Groz-beckert Needles and Kern-liebers Sinker which ensue the fabric quality and long life of machine
4  Multi-function of single jersey and fleece machine by changing few parts
Specification
